產品搜尋
| 勾選 | 型號 | 產品類型 | 顯示內容 | 產品圖 |
外形尺寸 (mm) |
視域窗口尺寸 (mm) |
顯示尺寸 mm/英寸 |
點間距 mm |
視角 | 背光類型或亮度 | 連接方式PIN數 | 接口方式 | 特殊說明 | 工作溫度 | 供電電壓 | IC芯片型號 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 128x32 COG點陣液晶屏/HTG12832F-3 | COG | 128x32 |
|
63.0x27.5x2.0 | 59.0x17.5 | 56.033x14.526 | 0.438x0.455 | 6H | 白光 | FPC-28PIN | MCU | -20~70℃ | 3.3v | ST7565R | ||
| 128x32 COG點陣液晶屏/網絡電話顯示屏/HTG12832F-5 | COG | 128x32 |
|
63.0x27.5x2.0 | 59.0x17.5 | 56.033x14.526 | 12H | 白光 | MCU | -20~70℃ | 3.3V | ST7565R | ||||
| 128x48/網絡電話顯示屏/128*48 COG點陣液晶屏/HTG12848A | COG | 128x48 |
|
81.1x38.3x4.9 | 75.3x28.3 | 66.52x24.92 | 0.52x0.52 | 6H | 白光 | FPC-28PIN | MCU | 抗靜電ESD 8KV | -20~70℃ | 3.3v | ST7565R | |
| HTG12864N01A-MCU8080 | COG | 128x64 |
|
67.8x42.0x5.3 | 63.0x33.0 | 55.01x27.49 | 6H | 白光 | FPC-20PIN | MCU | -20~70℃ | 3.3V | ST7567 | |||
| HTG13264C01A-MCU8080 | COG | 132x64 |
|
57.5x41.7x4.3 | 54.0x30.2 | 48.81x26.21 | 6H | 白光 | FPC-20PIN | MCU | -20~70℃ | 3.3v | ST7567 | |||
| HTG12864I01A-MCU8080 | COG | 128x64 |
|
71.3x52.2x5.3 | 65.5x38.0 | 60.77x32.93 | 6H | 白光 | FPC-20PIN | MCU | -20~70℃ | 3.3V | ST7567 | |||

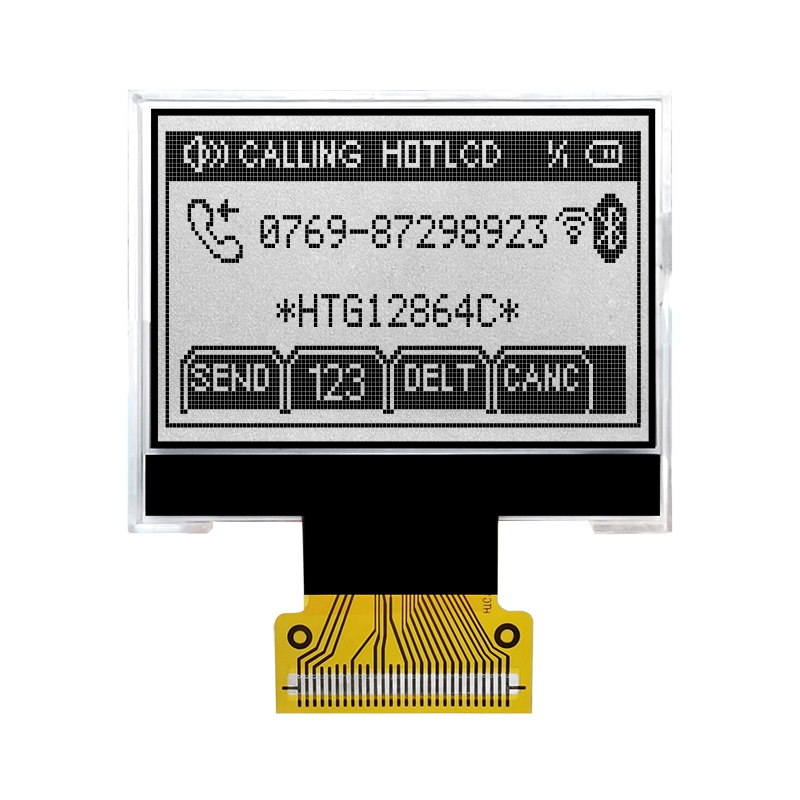

| 128x64 COG液晶圖形顯示模塊 黑白屏 ST7567 白光 HTG12864C01A-MCU8080 | COG | 128x64 |
|
40.8x33.1x4.2 | 36.0x23.5 | 33.25x20.45 | 6H | 白光 | FPC-20PIN | MCU | 抗靜電ESD 8KV | -20~70℃ | 3.3v | ST7567 | ||
| HTG12864N01A-SPI | COG | 128x64 |
|
67.8x42.0x5.3 | 63.0x33.0 | 55.0x27.49 | 6H | 白光 | FPC-10PIN | SPI | -20~70℃ | 3.3V | ST7567 | |||
| HTG12864T01A-SPI | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 6H | 白光 | FPC-10PIN | SPI | -20~70℃ | 3.3v | ST7567 | |||

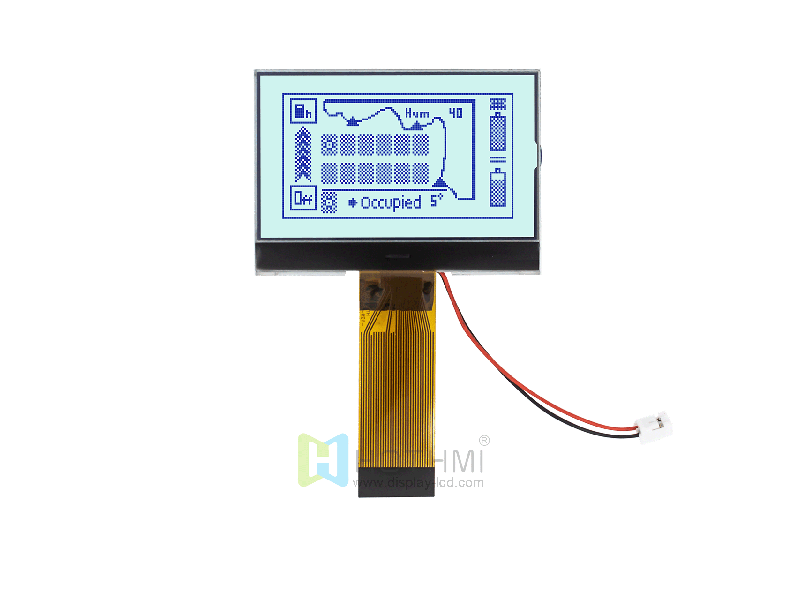

| 3.1 英寸 128x64圖形COG LCD 白底灰字圖形COG/FSTN+/MCU 接口/Arduino HTG12864-127-31W-20C10-V01 | COG圖形模塊 | 128x64 |
|
87.6x50.4x0.3 | 70.0x37.0 | 65.27x32.63 | 0.51x0.51 | 6H | FSTN+白背光 | FPC-20PIN | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3 V | ST7565R |
