產品搜尋
| 勾選 | 型號 | 產品類型 | 顯示內容 | 產品圖 |
外形尺寸 (mm) |
視域窗口尺寸 (mm) |
顯示尺寸 mm/英寸 |
點間距 mm |
視角 | 背光類型或亮度 | 連接方式PIN數 | 接口方式 | 特殊說明 | 工作溫度 | 供電電壓 | IC芯片型號 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2.2寸128x64 COG LCD/128x64圖形點陣COG LCD/DFSTN- 黑底白字/ST7567/Arduino HTG12864-20C-41W-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | 白色 | FPC-28PIN | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.2寸白底灰字點陣COG LCD/128x64COG點陣LCD顯示屏/FSTN+/ST7567/Arduino HTG12864-20C-31W-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | 白光 | FPC-28PIN | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 2.2寸128x64 COG點陣LCD顯示屏/黃綠色圖形COG/STN+/ST7567控制器/Arduino HTG12864-20C-01Y-28C05-V05 | COG | 128x64 |
|
53.2x37.8x2.8 | 49.2x27.0 | 40.92x24.28 | 0.38x0.32 | 6H | 黃綠 | FPC-28PIN | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3 V | ST7567 | |
| 96x64COG點陣液晶屏/HTG9664F | COG | 96x64 |
|
28.0x22.3x1.7 | 25.0x15.3 | 23.02x14.06 | 0.24x0.22 | 6H | 白光 | FPC-18PIN | MCU | -20~70℃ | 3.3v | ST7549 | ||
| 3.3寸128x128 紅綠藍背光圖形液晶LCD | FSTN+全透性點陣液晶顯示屏 | Arduino HTG128128E-35S-31H07-V01 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | 紅綠藍 | FPC-31PIN | SPI | 防靜電ESD 8KV | -20~70℃ | +3.3 V | SSD1848 | |

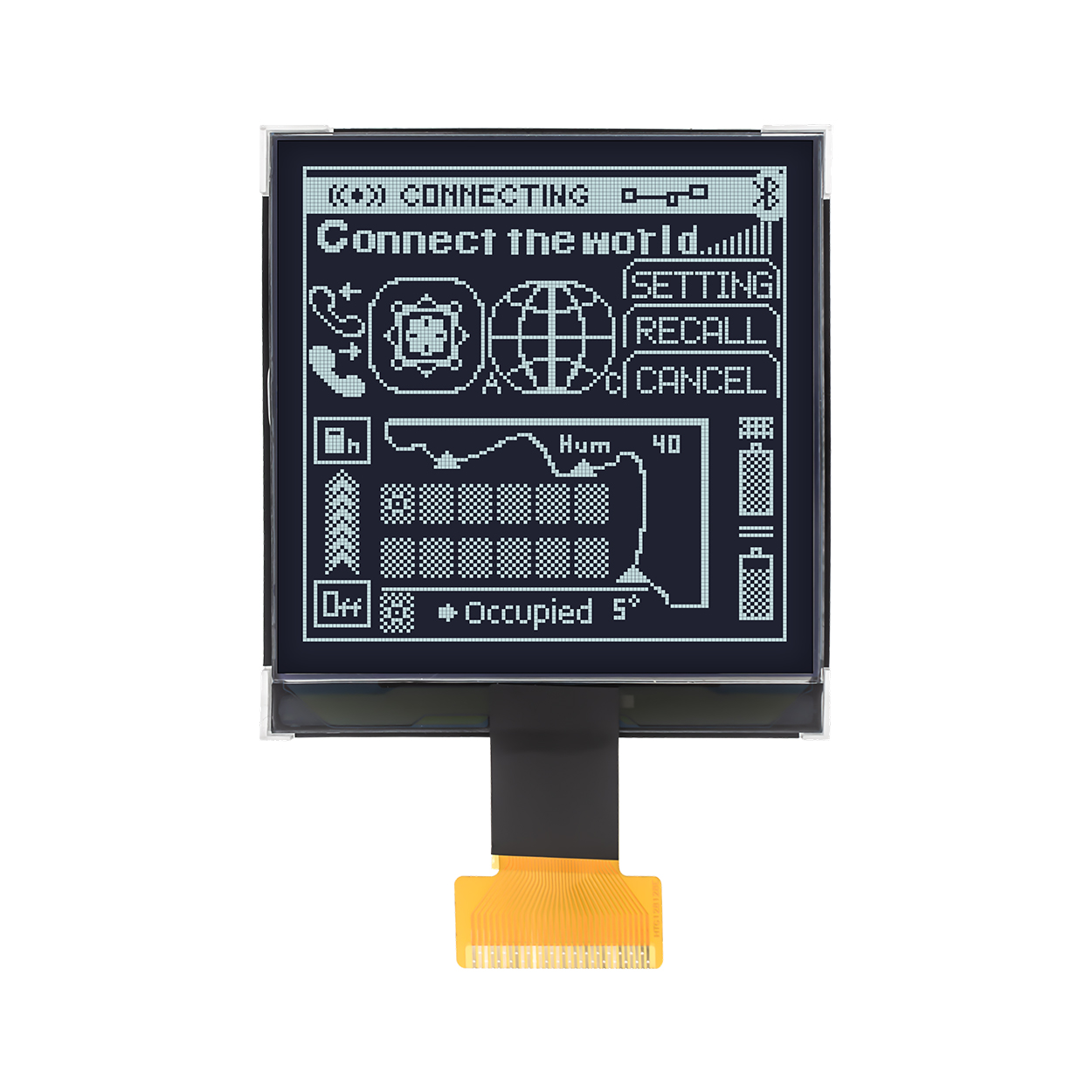

| 3.3寸128x128 藍底白字圖形液晶LCD | STN-全透性點陣液晶顯示屏 | Arduino HTG128128E-25W-31H07-V01 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | 白色 | FPC-31PIN | SPI | 防靜電ESD 8KV | -20~70℃ | +3.3 V | SSD1848 | |

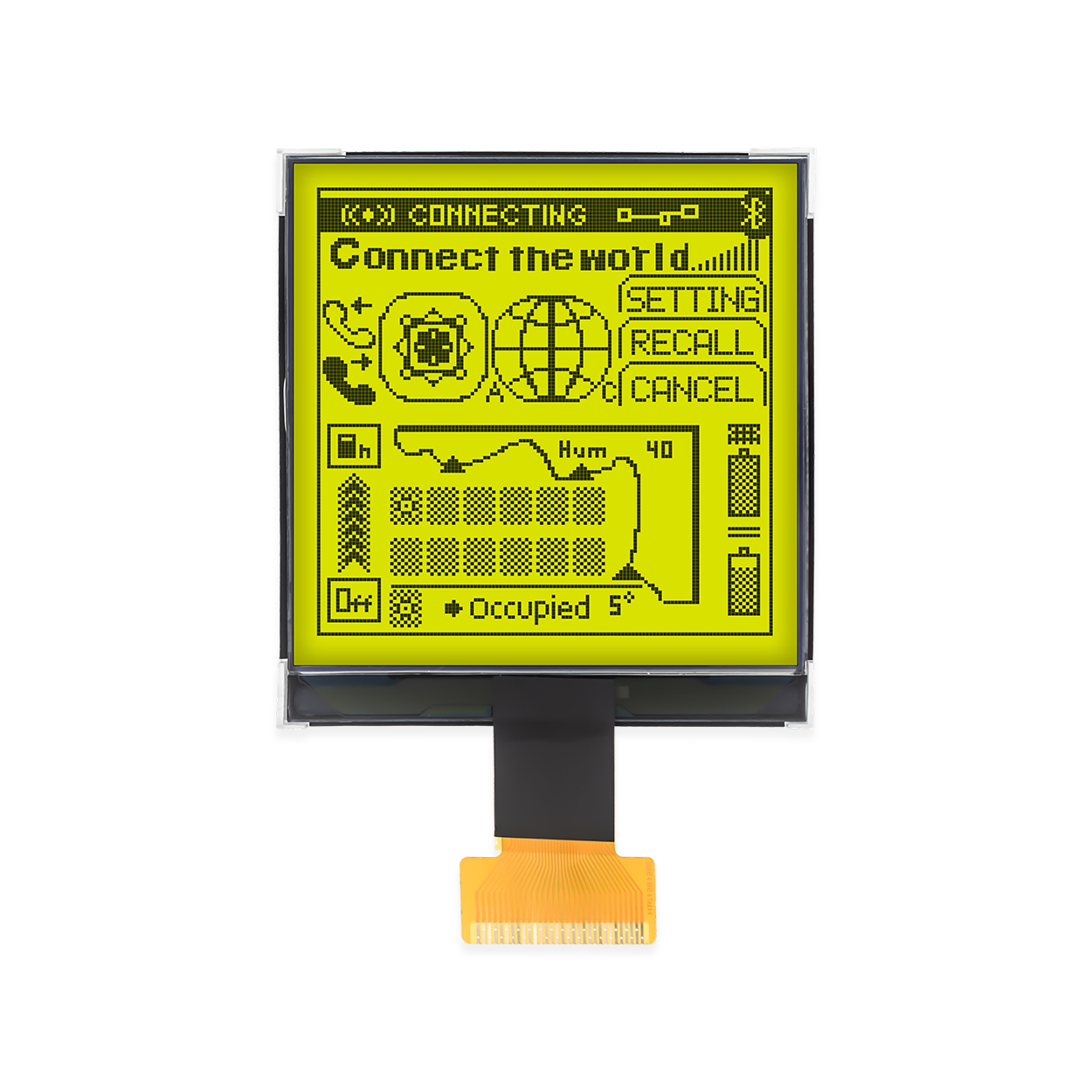

| 3.3寸黃綠色128x128 COG圖形液晶LCD | STN+點陣液晶顯示屏 | Arduino HTG128128E-11Y-31H07-V0 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | 黃綠 | FPC-31PIN | SPI | 防靜電ESD 8KV | -20~70℃ | +3.3 V | SSD1848 | |

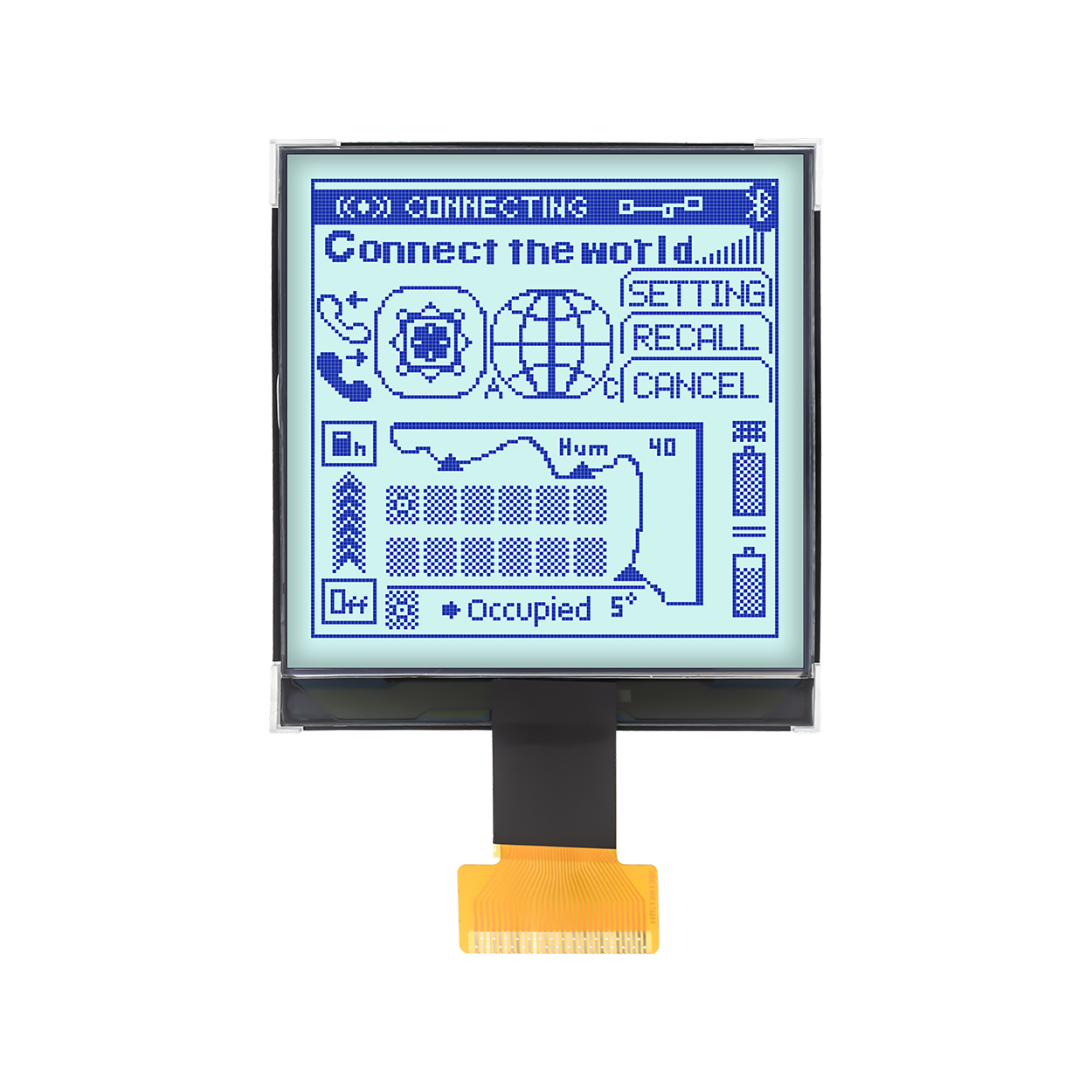

| 3.3寸128x128 COG圖形液晶LCD | STN+灰底藍字點陣液晶顯示屏 | Arduino HTG128128E-11W-31H07-V01 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | 白色 | FPC-31PIN | SPI | 防靜電ESD 8KV | -20~70℃ | +3.3 V | SSD1848 | |

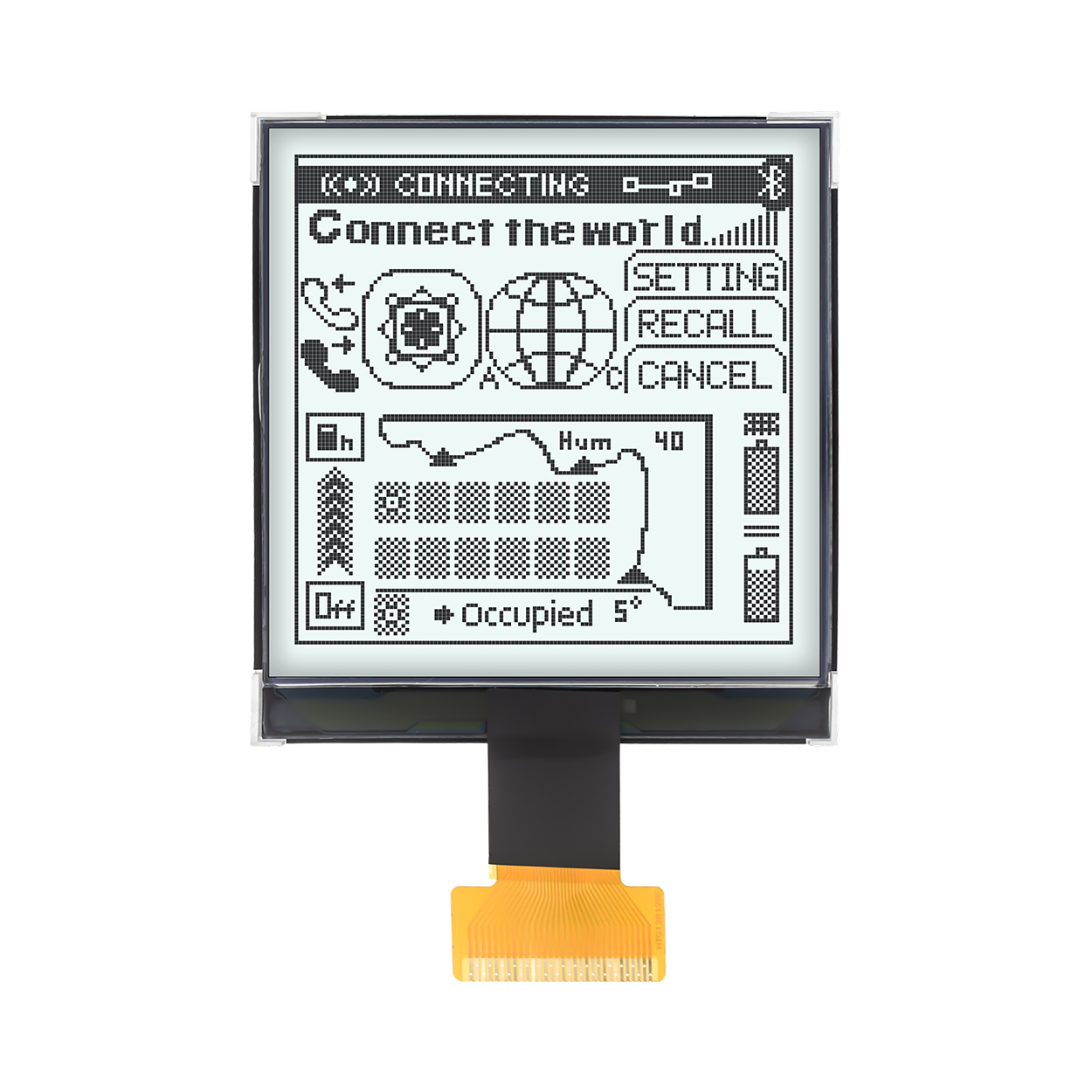

| 3.3寸128x128 圖形COG液晶顯示屏 | DFSTN-白底黑字點陣顯示屏 | Arduino HTG128128E-41W-31H07-V01 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | 白色 | FPC-31PIN | SPI | -20~70℃ | +3.3 V | SSD1848 | ||
| 3.3英寸128x128 圖形COG液晶顯示屏 | FSTN+白底灰字COG | Arduino HTG128128E-31W-31H07-V01 | COG | 128x128 |
|
66x71.5x4.85 | 60.0x59.6 | 55.02x55.02 | 0.43x0.43 | 6H | 白色 | FPC-31PIN | SPI | 防靜電ESD 8KV | -20~70℃ | +3.3 V | SSD1848 |
