產品搜尋
| 勾選 | 型號 | 產品類型 | 顯示內容 | 產品圖 |
外形尺寸 (mm) |
視域窗口尺寸 (mm) |
顯示尺寸 mm/英寸 |
點間距 mm |
視角 | 背光類型或亮度 | 連接方式PIN數 | 接口方式 | 特殊說明 | 工作溫度 | 供電電壓 | IC芯片型號 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 132*64 COG點陣液晶屏HTG13264C顯示屏 | COG | 132x64 |
|
57.5x41.7x2.0 | 54.0x30.2 | 48.81x26.21 | 0.41x0.37 | 6H | 白光 | FPC-28PIN | MCU | -20~70℃ | 3.3v | ST7565R | ||

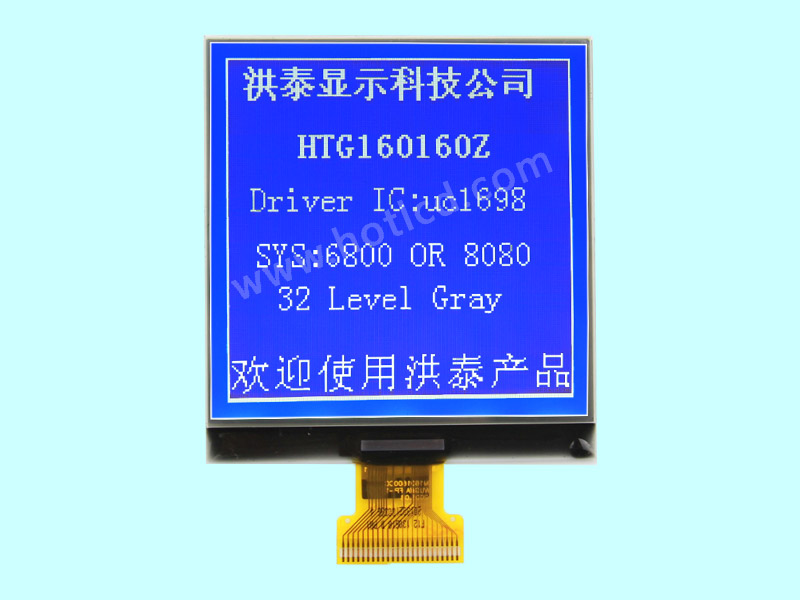

| 160x160 COG點陣液晶屏/工業計量儀顯示屏/HTG160160L-31W-34C05-V01 | COG | 160x160 |
|
88.0x93.0x5.2 | 84x81.5 | 75.18x75.18 | 0.47x0.47 | 6H | 34pin | MCU | 抗靜電ESD 8KV | -20~70℃ | 3.3V | UC1698 | ||
| 160x32 COG點陣液晶屏/HTG16032G | COG | 160x32 |
|
91.2x31.2x5.0 | 83.0x21.2 | 75.16x16.0 | 0.47x0.47 | 6H | 白光 | FPC-22PIN | MCU | 抗靜電ESD 8KV | -20~70℃ | 3.3v | ST7525 | |
| 192x64 COG點陣液晶屏/HTG19264A | COG | 192x64 |
|
106.49x46.66x5.2 | 102.89x36.06 | 97.486x32.462 | 0.508x0.458 | 6H | 白光 | FPC36PIN | MCU | 可配套鐵框 | -20-70℃ | 3.3V | IST3020 | |

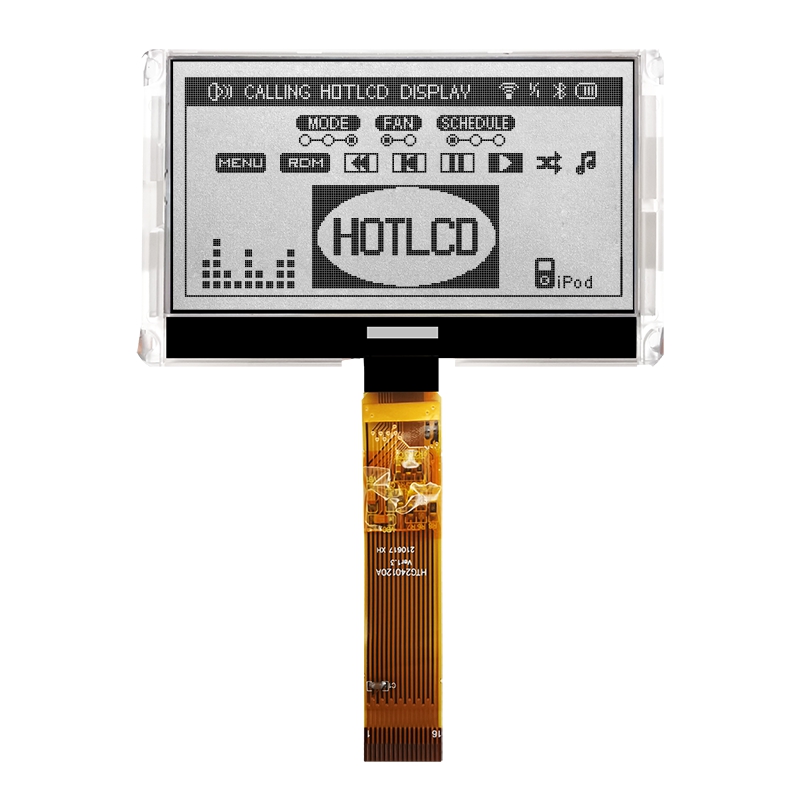

| 2.9寸 240X120 圖形 COG LCD 模塊 FSTN+ 顯示屏，帶白色背光 UC1608/HTM240120B-31W-N3P-V02 | COG | 240x120 |
|
84.0x50.0x6.6 | 72.0x37.0 | 67.17x33.57 | 0.28x0.28 | 12H | 背光顏色可選 | FPC-16PIN | MCU | 抗靜電ESD 8KV | -20~70℃ | 3.3V | UC1608 | |
| 2.9寸240X120圖形COG液晶模塊 SPI FSTN+顯示屏帶白色背光/HTM240120B-31W-N3S-V01 | COG | 240x120 |
|
84.0x50.0x6.6 | 72.0x37.0 | 67.17x33.57 | 0.28x0.28 | 12H | 背光顏色可選 | FPC-16PIN | SPI | 抗靜電ESD 8KV | -20~70℃ | 3.3V | UC1608 | |

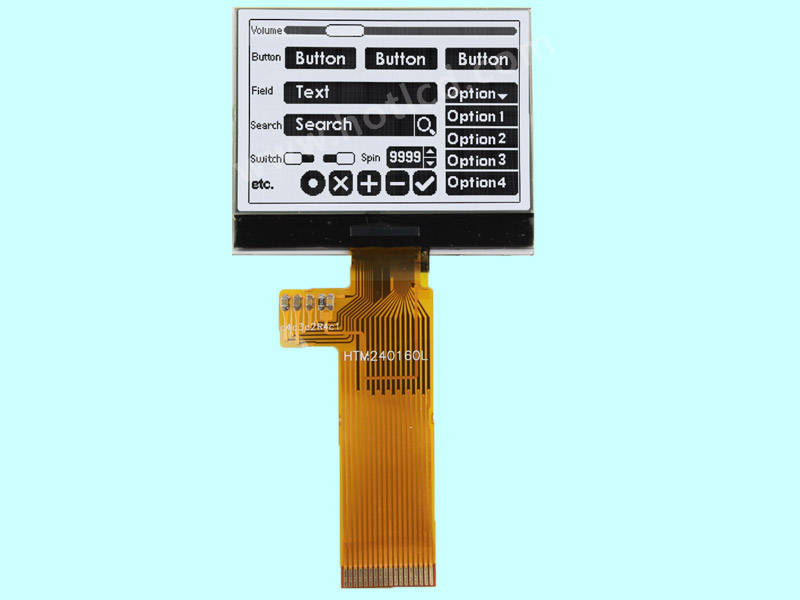

| 2.6寸 240X160圖形點陣COG液晶屏| FSTN+紅綠藍背光 | MCU接口 | Arduino HTG240160L-35S-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3 V | UC1698U | ||
| 2.6寸 240X160圖形點陣COG液晶屏| FSTN+紅綠藍背光 | MCU 接口 | Arduino HTG240160L-35S-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3 V | UC1698U | ||
| 2.6寸 240X160圖形點陣藍底白字COG液晶屏| STN-LCD | MCU 接口 | Arduino HTG240160L-25W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3 V | UC1698U | ||
| 2.6寸 240X160圖形點陣藍底白字COG液晶屏| STN-LCD | MCU接口 | Arduino HTG240160L-25W-18C10-V07 | COG | 240x160 |
|
60.0x49.5x5.6 | 56.0x38.7 | 51.94x34.62 | 0.216x0.216 | 6H | FPC-18PIN | MCU | 防靜電ESD 8KV | -20~70℃ | +3.3 V | UC1698U |
