產品搜尋
| 勾選 | 型號 | 產品類型 | 顯示內容 | 產品圖 |
外形尺寸 (mm) |
視域窗口尺寸 (mm) |
顯示尺寸 mm/英寸 |
有效尺寸 mm |
視角 | 背光類型或亮度 | 連接方式PIN數 | 接口方式 | 特殊說明 | 工作溫度 | 供電電壓 | IC芯片型號 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

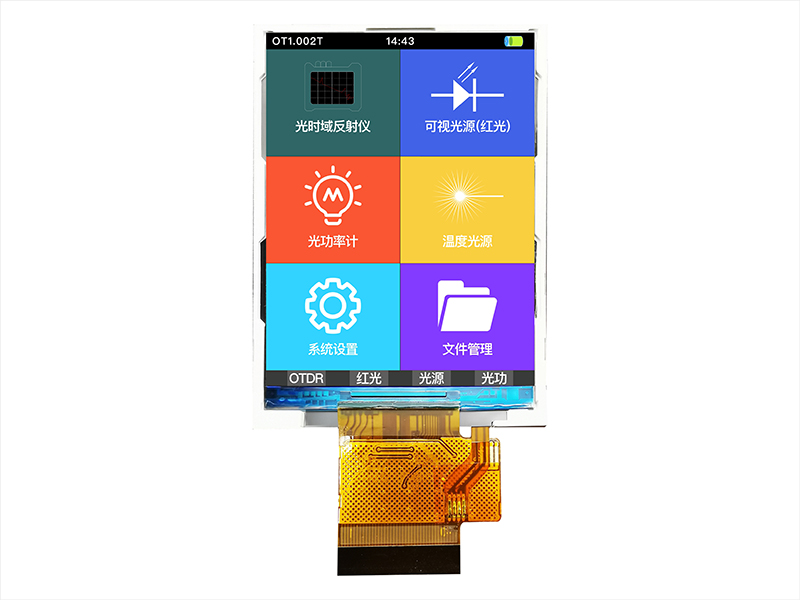

| 2.8寸TFT彩屏帶電阻觸摸屏|240x320分辨率|TN12點視角|普亮|TFT-H028A5QVTST2R40 | TFT豎屏 | 240x320 |
|
50.0x69.2x3.65 | 2.8 | 2.8 | 43.2x57.6 | 12點 | 280cd/m2 | 40PIN | MCU | 帶電阻觸摸、MCU8/16并口 | -20~70℃ | 3.3V | ST7789V | |
| 2.8寸TFT/240*320分辨率/TN/MCU接口/TFT-H028B6QVTST3N40 | TFT豎屏 | 240x320 |
|
50.00x69.20x2.45 | 2.8 | 2.8 | 43.20x57.60 | 12H | 400cd/m2 | FPC-40PIN | SPI | MCU8/16,SPI3L/4L | -20~70℃ | 3.2V | ST7789V | |

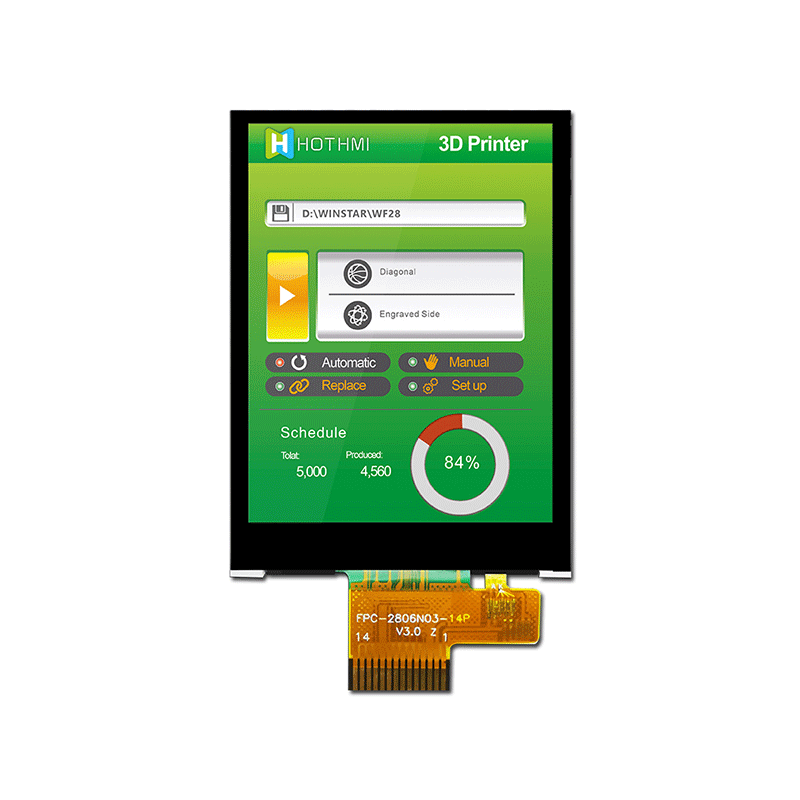

| 2.8寸TFT/240x320分辨率/SPI串口/TFT-HTT2806N03-14P | TFT豎屏 | 240x320 |
|
50.0x69.2x3.6 | 2.8 | 2.8 | 43.2x57.8 | 12H | 260cd/m2 | FPC-14PIN | SPI | 非主推產品 | -20~70℃ | 2.8v | ILI9341 | |
| 2.8寸TFT/240*320分辨率/TN視角/高亮/MCU接口/TFT-H028B7QVTST3N40 | TFT豎屏 | 240x320 |
|
50.00x69.20x2.45 | 2.8 | 2.8 | 43.20x57.60 | 12H | 350cd/m2 | FPC-40PIN | MCU | MCU8/16 | -20~70℃ | 3.3V | ST7789V | |
| 2.8寸TFT/240*320分辨率/TN/SPI 接口/TFT-H028A8QVTST2N14 | TFT | 240x320 |
|
50.00x69.2x2.50 | 2.8 | 2.8 | 43.2x57.6 | 12H | 250cd/m2 | FPC-14PIN | SPI | 抗靜電ESD 8KV | -20~70℃ | 2.8V | ST7789V | |
| 2.8寸TFT彩屏| QVGA 240*320分辨率|MCU接口|TFT-H028B9QVTST3N40 | TFT豎屏 | 240x320 |
|
50.00x69.20x2.5 | 2.8 | 2.8 | 43.20x57.60 | 12點 | 350cd/m2 | 40pin | MCU | 16BIT | -20~70 | 2.8V | ST7789V | |
| 2.8寸TFT彩屏| VGA 480*640分辨率|全視角IPS工藝|MIPI接口|TFT-H028A10VGIST6N20 | TFT豎屏 | 480x640 |
|
46.20x65.18x2.3 | 2.8 | 2.8 | 43.20x57.60 | 全視角 | 600cd/m2 | 20pin | MIPI | 抗靜電ESD 8KV | -20~70℃ | 2.8V | ST7701S | |

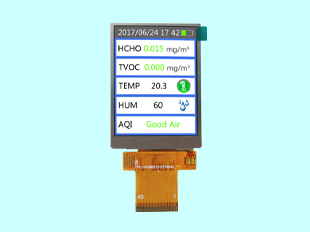

| 2.8寸TFT/240*320分辨率/12H/MCU 接口/TFT-H028B11QVTST4N45 | TFT豎屏 | 240x320 |
|
50.00x69.45x2.60 | 2.8 | 2.8 | 43.20x57.60 | 12H | 400cd/m2 | FPC-45PIN | MCU | 8080 MCU 8/16 Bit | -20~70℃ | 3.3V | ST7789V | |

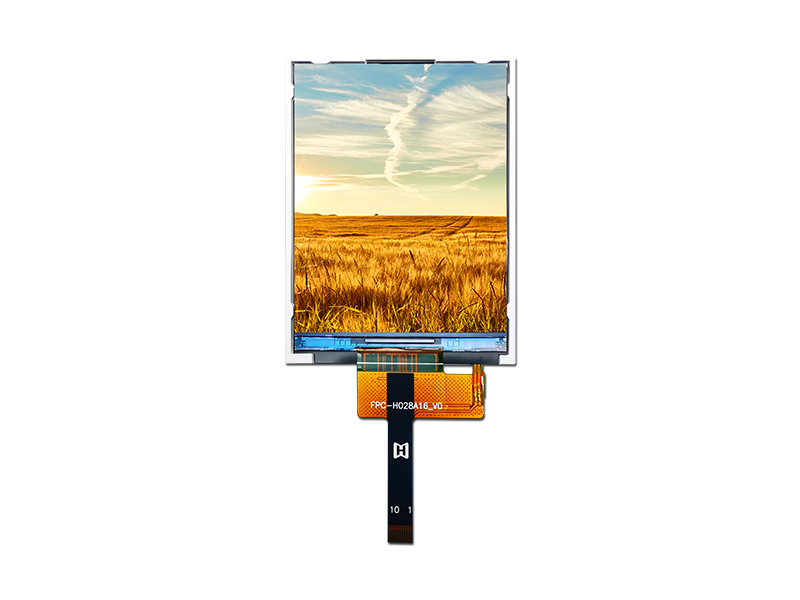

| 2.8寸TFT彩屏/240*320分辨率/SPI接口/全視角/超高亮500cd/m2/TFT-H028A16QVIST5N10 | TFT豎屏 | 240x320 |
|
50.0x69.20x2.3 | 2.8 | 2.8 | 43.20x57.60 | 全視角 | 500cd/m2 | 10PIN | SPI | 抗靜電ESD 8KV | -30~80℃ | 3.3V | ST7789 | |

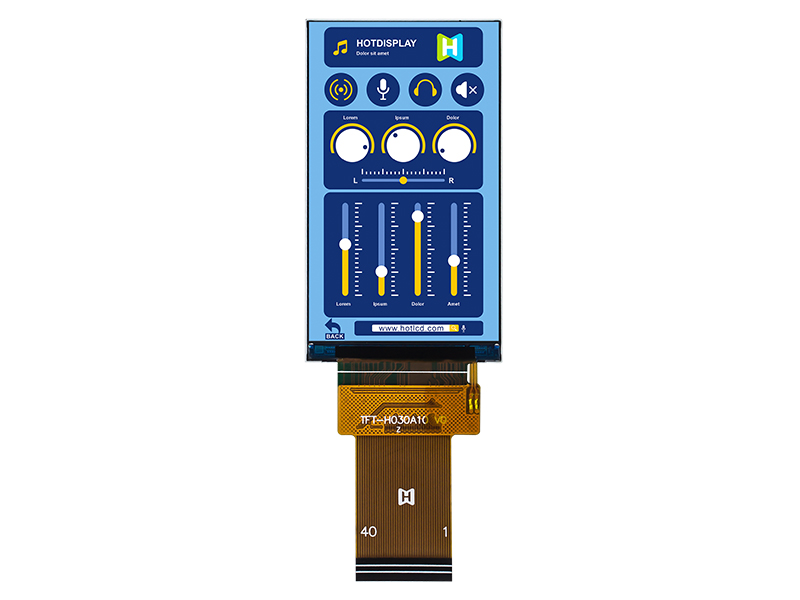

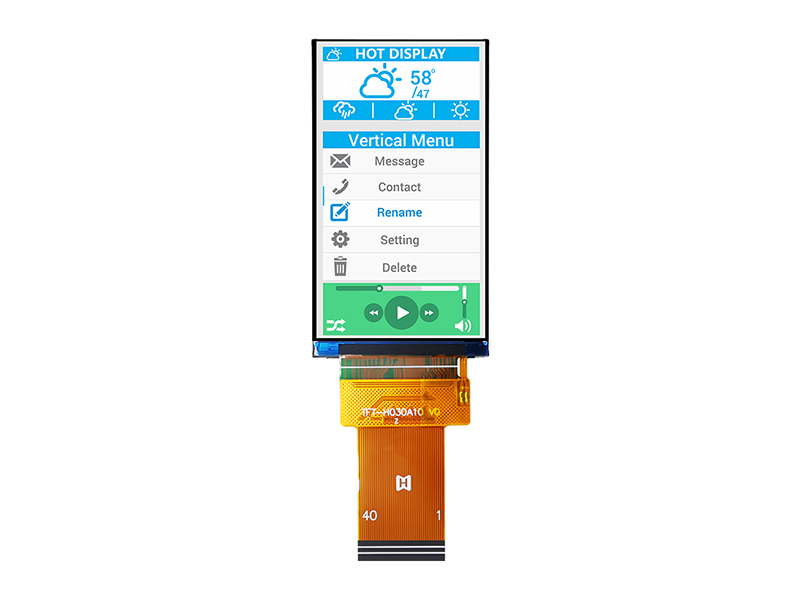

| 3.0寸 IPS全視角 480x854分辨率 寬溫 TFT 顯示屏 ST7703 適用于工業計算機 TFT-H030A10FWIST3N40 | TFT豎屏 | 480x854 |
|
41.80X73.97X2.15 | 3.0 | 3.0 | 36.72x 65.28 | 全視角 | 350cd/m2 | 40pin | SPI | 抗靜電ESD 8KV | -30~80℃ | 3.3V | ST7703 |
